How to convert DWG to PDF in Windows 11/10

In this guide, we are going to discuss different methods to convert DWG to PDF in Windows 11/10. DWG (derived from Drawing) is a file format that stores 2D and 3D designs. It is a Computer-Aided Design (CAD) drawing file format developed by AutoDesk and is natively used in AutoCAD software.

Now, if you have models saved in DWG files and you want to share them with others, you will need to convert them to a common and user-friendly format like PDF. To help you out, we will be sharing different tools that enable you to convert DWG to PDF. You can use any of the listed methods to perform DWG to PDF conversion on Windows 11/10 PC. So, without much ado, let us get started with the main solutions now!

How do I convert DWG to PDF for free?

To convert DWG to PDF for free, you can use a free online service or free software that supports DWG to PDF conversion. In this article, we will mention multiple DWG to PDF converter tools, web services and software that allow you to convert DWG to PDF on Windows 11/10.

How to convert DWG to PDF in Windows 11/10

Here are the different methods to convert a DWG file to PDF format on your Windows 11/10 PC:

  1. Convert DWG to PDF using a free online service like Autodesk Viewer.
  2. Use a free software like SolveSpace to convert DWG to PDF.
  3. Batch Convert DWG to PDF using XnConvert.

Let us discuss the above methods in detail now!

1] Convert DWG to PDF using a free online service like Autodesk Viewer

You can use a free online service that allows you to convert DWG to PDF. Simply open the converter website in a web browser, import DWG files, and convert them to PDF in few simple steps. Here are some of the free options for you to do that:

  1. Autodesk Viewer
  2. AnyConv
  3. pdfconvertonline.com

Let us discuss the online DWG to PDF converter websites in detail!

1] Autodesk Viewer

Autodesk Viewer is an online 2D and 3D file viewer including DWG. You can also use it to convert DWG to PDF as it provides a Print feature using which you can convert DWG to PDF. Let us check out the steps to do so:

  1. Launch a web browser.
  2. Go to its website.
  3. Import DWG files.
  4. Click on the Print option.
  5. Set up the printer to Microsoft Print to PDF.
  6. Press the Print option to convert DWG to PDF.

Firstly, open a web browser and go to the Autodesk Viewer website. Now, sign in to your account to use this service. If you don’t have one, sign up with your email ID and then log in to your account.

Next, import a DWG file from your PC by clicking on the Upload a new file option. After that, you will be able to view the DWG files in it.

Simply click on the Print button present at the top toolbar. Then, enable or disable remove the background color and high-resolution options as per your preference, and hit the Print button.

Now, select the Microsoft Print to PDF as printer and set up configurations like paper size, margins, scale, color, etc. And, press the Print button, provide output filename, and folder, and click the Save option to start conversion.

This is how you can use this online 2D and 3D viewer to convert DWG to PDF.

See: Best Free ePub to PDF converter tools

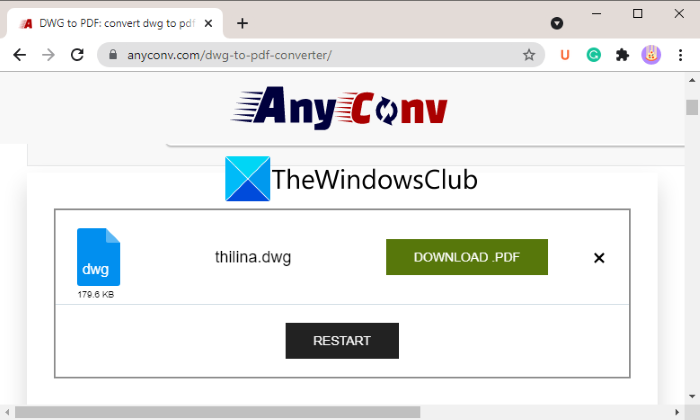

2] AnyConv

AnyConv is a free online file converter tool that also lets you convert DWG to PDF. Apart from PDF, it also lets you convert SVG, JPG, PNG, GIF, and more formats. The conversion steps are very simple using this tool. Just follow the below procedure and you will be able to convert DWG to PDF without much hassle:

  1. Launch a web browser and open the anyconv.com website.
  2. Click on the Choose File option to import an input DWG file.
  3. Set the output format to PDF.
  4. Hit the Convert button to initiate DWG to PDF conversion process.

You can download the resulting PDF after the conversion.

Also read: How to convert OXPS to PDF

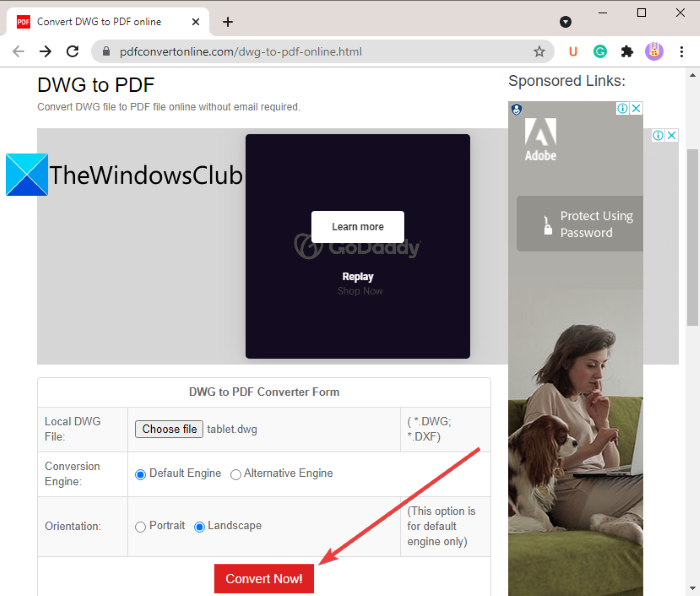

3] pdfconvertonline.com

pdfconvertonline.com is a free dedicated online DWG to PDF converter website. It lets you convert DXF and DWG files to PDF. Here are the simple steps to perform the conversion:

  1. Firstly, open this website in a web browser.
  2. Now, press the Choose file button to browse and select the source DWG file.
  3. Next, you can select conversion engine and orientation.
  4. After that, press the Convert Now button to convert DWG to PDF.

When the conversion is done, you will be able to view and download the resulting PDF file.

Read: How to convert DXF to GCode in Windows 11/10

2] Use a free software like SolveSpace to convert DWG to PDF

There are a few free software for Windows 11/10 to convert DWG to PDF. Here, we are going to use SolveSpace software for converting DWG to PDF. SolveSpace is a CAD modeling software that provides you a feature to convert DWG to PDF. Apart from PDF, it also lets you convert DWG to other file formats including SVG, EPS, PS, DXF, etc. Let us now find out the steps to perform the conversion in this software.

How to convert DWG to PDF in SolveSpace:

Here are the main steps to perform DWG to PDF conversion in SolveSpace on your Windows 11/10 PC:

  1. Download SolveSpace.
  2. Launch the SolveSpace application.
  3. Open a DWG file in it.
  4. Go to the File menu.
  5. Click on the Export 2d view option.
  6. Save the output PDF file.

Firstly, you need to download and then launch this free CAD modeling software on your Windows 11/10 PC. You can download it from solvespace.com and then double click on its application (exe) file to launch it. It is a portable application, so it needs no installation.

Now, browse and import a DWG file that you want to convert using the File > Import option. You will then be able to view the drawing on its main screen.

If you want, you can edit the drawing using available modeling tools. If not, skip to the next step.

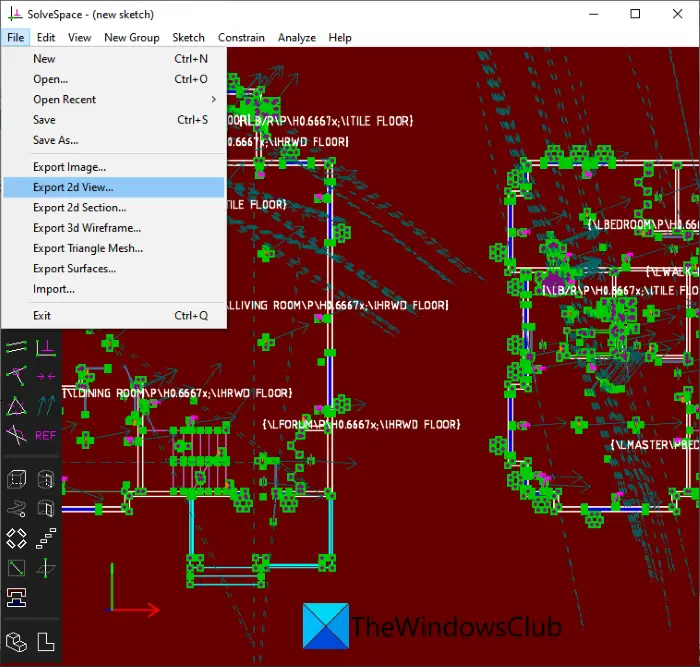

Next, go to the File menu and then press the Export 2d View option. You will then be able to set the output filename and location to save the resulting PDF. Do that and click on the Save button. This will create a PDF file with the imported DWG design.

Read: How to Convert PPS to PDF in Windows 11/10

3] Batch Convert DWG to PDF using XnConvert

You can also use XnConvert to batch convert multiple DWG files to PDF format at once. XnConvert is a batch image converter and resizer software for Windows 11/10. Along with several 2D images, it also supports 2D DWG drawings to import and convert to another format. In it, you can add multiple DWG files and then convert them all to PDF format simultaneously. Let’s check out how!

How to batch convert DWG to PDF using XnConvert:

Here are the main steps to batch convert DWG to PDF using XnConvert on Windows 11/10:

  1. Download and install XnConvert.
  2. Launch XnConvert.
  3. Add one or more input DWG files to it.
  4. Select the output format as PDF.
  5. Choose output directory and filename.
  6. Press the Convert button to start the batch DWG to PDF conversion process.

Firstly, you need to have XnConvert installed on your PC to batch convert DWG to PDF. Download and install it from its official website and then launch its main interface.

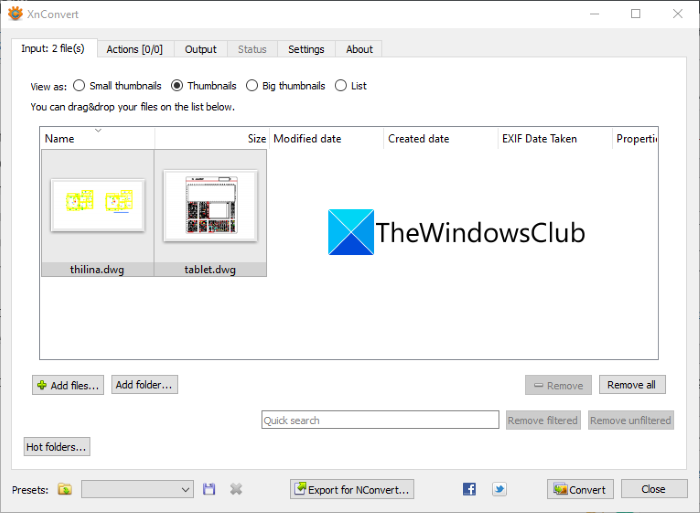

Now, in the Input tab, add the source DWG files; one or many. You can also add a whole folder containing input DWG files.

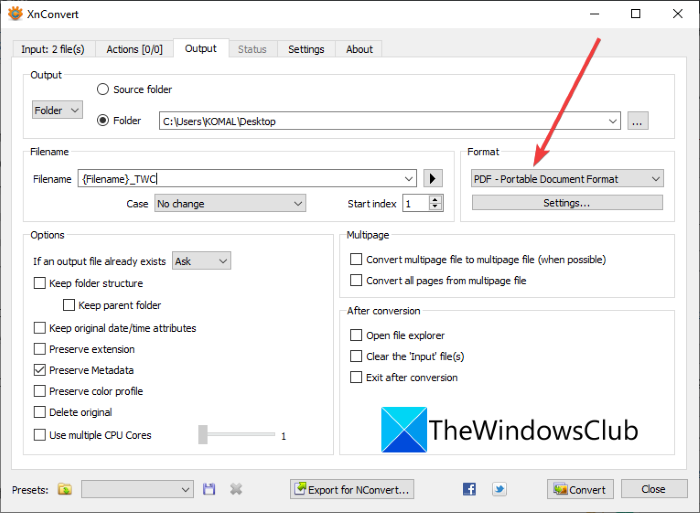

Next, go to the Output tab, and from here, set the output format to PDF and then configure other output settings like output folder, filename, metadata options, and more.

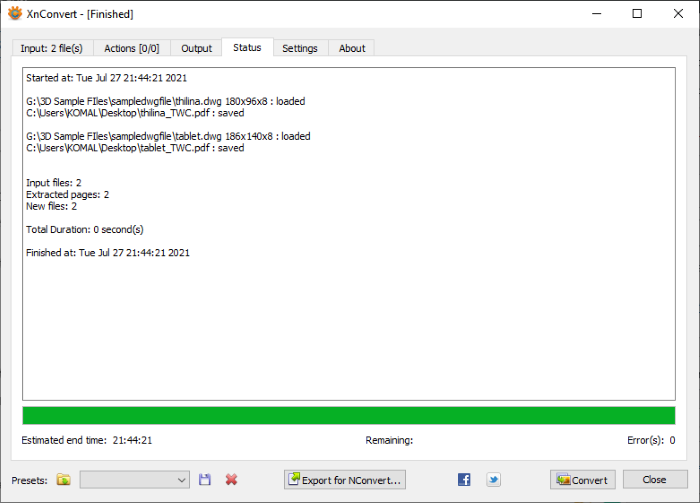

Finally, click on the Convert button and it will start the batch DWG to PDF conversion process. You can view the status of the conversion process in its Status tab.

This software also provides you editing options that you can access from its Actions tab. If you want to edit the source image, you can easily apply actions like resize, crop, rotate, add text, watermark, mirror, apply filters, and more.

If you have multiple DWG files and you want to convert them all to PDF format at once to save your time and effort, you can use XnConvert.

What is the best DWG to PDF Converter?

All the mentioned online converters and free software work well as a DWG to PDF converter. However, I personally liked the free online services Autodesk Viewer and pdfconvertonline.com as these two provide good quality output PDF.

How do I convert multiple DWG files to PDF?

If you want to convert multiple DWG files to PDF at once, then you may use XnConvert software. It is a batch image converter that lets you batch convert DWG to PDF.

That’s it! Hope this article helps you find a suitable tool to convert DWG to PDF on your Windows 11/10 PC.
